Spray Bottles & Pressure Sprayers

Spray bottles for your car, pump-up pressure sprayers and foam sprayers at a glance

Which delivery system do you actually need? A hand spray bottle meters out small areas, a pump-up pressure sprayer holds pressure across whole vehicle sides, and a foam sprayer stretches out the contact time. At Detailing1 you'll find all three types, plus replacement bottles, spray heads and chemical-resistant seals.

Spray bottles and pump-up pressure sprayers are the delivery systems that get liquid care products onto paint, glass, wheels and the interior. A hand spray bottle builds the pressure fresh with every stroke, a pump-up pressure sprayer stores it in the tank, and a foam sprayer whips air into the stream. The sprayer decides how much product you burn through, how evenly a panel gets wetted, and how long the cleaner clings on.

• The nozzle sets your consumption, not the cleaner. A trigger sprayer puts out a fixed dose per stroke and shifts its spray pattern with how hard your hand pulls. A pump-up pressure sprayer runs on stored pressure and lays down an even mist. For you that means less re-spraying over spots that were soaked ages ago.
• Foam buys you dwell time. A foam sprayer pulls air into the liquid stream, the volume climbs and the mix clings to vertical panels instead of running off in seconds. Handy: the cleaner keeps working right where a thin, runny spray would already have ended up in the wheel arch.
• Seals decide how long it lasts. Acids, alkalis and solvent-based products eat away at standard nitrile-rubber seals. Versions with an FKM seal kit or a dedicated alkaline build stand up to them. You'll notice it like this: the pump stays smooth and the spray pattern doesn't fray out even after months.

Day-to-day from Detailing1: We regularly get questions about sprayers that start dripping after a few weeks, get stiff, or only put out a frayed jet. The cause is nearly always the same: one unit that held wheel cleaner, then interior cleaner, then a quick sealant, each time with no rinse in between. Pin one sprayer to one product and label it for good, instead of decanting a new mix before every job. After you're done, run clean water through it once, let the leftover pressure off and leave it to dry open. That costs you two minutes and it's the difference between one season and several years.

The delivery system decides consumption and evenness

The same concentrate goes a different distance depending on the unit, because droplet size and the amount you lay down don't hang on the cleaner — they hang on the nozzle in front of it.

A hand spray head is a little piston pump. Every pull on the trigger pushes a set amount through the nozzle, then the pressure drops back to zero. So the spray pattern swings with how hard your hand works: pull through briskly and you get a fine mist, squeeze slowly and you drop coarse beads that run straight down.

A pump-up pressure sprayer splits making the pressure from spending it. You pump air into the tank, and that stored pressure pushes the liquid through the nozzle at a constant rate for as long as you hold the trigger. The mist stays just as fine across the whole panel, because it's the pressure in the tank calling the dose, not your hand.

On top of that, the two systems differ in droplet size. A fine mist covers more area per millilitre and clings better; a coarse jet carries further and catches glass, tyres and the floor along the way. That overspray is wasted product, and with strong products it's also why rubber seals and trim get needless contact.

Even coverage isn't cosmetic — it's the lever on how much you use. Where a trigger lays down streaky, you spot dry patches and spray again, and every re-spray partly lands on areas that were already wet. Day-to-day, that's exactly the number-one reason a litre of concentrate runs dry faster than you'd figured.

Then there's dwell time. A cleaner that works three minutes on one spot and thirty seconds on the next gives you a patchy result and begs for a second round. A film you lay on evenly starts everywhere at the same moment, and you rinse off after a single pass.

The third point is your wrist. A bonnet takes a few pulls on the trigger. A full pre-wash with four wheels, sills and both flanks takes several hundred, and the last of them come out noticeably weaker than the first.

The hand spray bottle for short reaches and small areas

For quick detailers, interior cleaners and anything that goes on small areas in measured doses, the classic spray bottle for your car stays the most direct tool.

The standard in detailing is called 28/400. The numbers describe the neck thread: 28 millimetres outside diameter, 400 as the code for the thread form. In plain terms, bottles and spray heads from different makers fit together as long as both follow that standard. So you're not locked into one system.

The Koch-Chemie HDPE-Zylinderflasche (28/400) Sprühflasche 1000ml is our best-selling empty bottle of this type. HDPE is an opaque, chemically tough plastic that shrugs off alkaline cleaners and solvent content. Clear PET goes milky with some products or warps as soon as pressure builds up inside.

The spray head is the wear part, not the bottle. You buy the Koch-Chemie Sprühkopf „Star" (28/400) CHS-3AN von Canyon on its own and drop it onto any bottle with a matching thread. You'll spot it like this: when the jet frays or the pump sticks, you swap the head and keep the bottle.

On the head itself you usually set three modes: closed, a tight jet and a fine mist. For interior surfaces you go with the mist and spray onto the cloth instead of the trim, so nothing runs into switches and gaps. The jet belongs on spots you want to hit on purpose — door shuts, hinges and the fuel flap.

Inside the cabin the iK Sprayers „iK Multi" TR Mini 360º kleine Sprühflasche (28/400) is nicer to work with. Its 360-degree valve feeds even upside down, so you spray under the dash, into door pockets and along the headliner edge without having to tip the bottle.

The hand bottle's limit is area. The moment a whole car needs wetting, you're fighting the pump more than the dirt. Empty bottles, spare heads and ready-filled options sit under Spray bottles.

The pump-up pressure sprayer holds pressure across the whole side of the car

As soon as there's more than one panel to wet, the pump-up pressure sprayer plays its strong hand: pump once, then spray non-stop without your hand taking over the dosing.

Air sits under pressure in the tank, and a safety valve caps it at the top end. As long as the pressure stays in the working range, the spray cone doesn't change. You tell from the jet getting sluggish when it's time to top up the pumping, and that keeps you in control of how much actually lands on the paint.

The iK Sprayers „iK Multi" Pro 2 Druckpumpzerstäuber (inkl. Farbenkennzeichnung) is the classic of the two-litre class and just the right amount for pre-cleaner, bug remover or wheel cleaner on a single car. The colour-coding it ships with pins one product to each unit for good.

The version with the all-round valve goes a step further. The iK Sprayers „iK Multi" Pro 2 360° Druckpumpzerstäuber (inkl. Farbenkennzeichnung) feeds in any position, even upside down. You reach wheel arches, the undersides of sills and door entries with it, without contorting yourself or having to keep the tank upright.

If you want a plain build that's easy to service, go for the solo CLEANLine (304 A / B) Pumpsprüher 2 Liter. Seal kits and spare parts for the CLEANLine come separately, which stretches its life instead of binning the whole unit over one porous O-ring.

Typical jobs are pre-cleaner along a whole side of the car, bug remover on the front end and mirrors, wheel cleaner on all four wheels in one go. Every build from the two-litre hand pump to the big compressor model sits under Pressure sprayers.

Foam sprayers turn your cleaner into foam that stays put

A foam sprayer pulls air into the liquid stream and turns a thin, runny cleaner into foam that sits on vertical panels instead of running off.

Technically that happens at a fine mesh or screen just before the outlet. The liquid gets churned up there and drags air in, and the volume multiplies. For you that means a few millilitres of concentrate turn into a blanket of foam that works just as long on the door as on the flat bonnet.

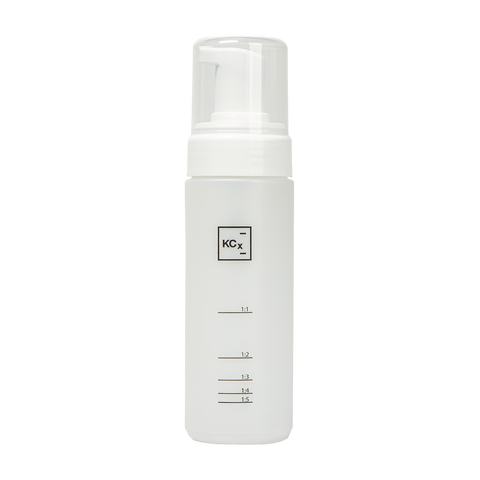

For the interior and for leather, the Koch-Chemie Foamer Bottle Schaumspender is the metered answer. The foam comes out of the bottle dry and controlled, doesn't drip into seams or electrics and works straight in with a brush, without soaking the upholstery.

For exterior panels the iK Sprayers „iK Foam" Pro 2 Pumpschaumsprüher (inkl. Farbenkennzeichnung) runs on stored pressure and lays down a much thicker coat. The solo CLEANLine „VARIOfoam" (304 FA / FB) 2 Liter Schaumsprüher lets you dial the consistency on top of that, from wet to dry.

One distinction we clear up a lot: a pump foam sprayer is no replacement for a foam lance on a pressure washer. The lance makes foam from water pressure and blankets a whole car in short order. The right cleaner for that sits under Snow Foam.

The pump foam sprayer plays its strength where there's no pressure washer standing by or where you're working a spot on purpose: single wheels, the bug-covered front end, door entries, cloth upholstery. Every build from the hand dispenser to the pressurised unit sits under Foam sprayers.

Seals decide which chemistry a sprayer can take

The most common failure isn't a broken pump — it's a seal that's swollen up or gone hard from the chemistry in the tank.

Three materials split the field. Nitrile rubber, NBR for short, is the standard and takes oils and mild cleaners. EPDM copes with alkalis and water-based products and doesn't like mineral oils. FKM, known by the trade name Viton, covers acids and solvents. In practice that means the seal kit decides what you're allowed to fill it with.

That's why makers offer the same unit in several builds, one for acidic and one for strongly alkaline products. From the outside they look almost identical and differ inside at the seals, O-rings and dip tube. Grab the wrong version here and you won't notice for weeks.

The decay runs in stages. First the sealing ring swells and the pump turns stiff. Then it hardens, the tank no longer holds pressure and the unit hisses when you set it down. Finally the outlet dribbles, and the spray cone breaks up into separate jets because the nozzle is being fed unevenly.

What we see time and again at Detailing1: solvent-based tar removers and strongly acidic wheel cleaners end up in a plain hand bottle because it's the one within reach. No delivery system is resistant to everything. Hot liquids, aggressive thinners and long-term storage under pressure are on every maker's no-go list too.

The routine against it is simple: before filling, check the cleaner's resistance rating; after use, rinse with clean water and let the pressure off. Which products fall into which group is laid out in the overview under Cleaners, sorted by pH value and use case.

Which delivery system fits your workflow

The call comes down to three questions: how big is the area, how long should the product cling there, and which chemistry are you filling in.

If you work spot by spot, a bottle plus a swappable head is the cheapest way to go. The Koch-Chemie HDPE-Zylinderflasche (28/400) Sprühflasche 1000ml and the Koch-Chemie Sprühkopf „Star" (28/400) CHS-3AN von Canyon together make a system you can re-kit as often as you like.

The moment a whole car gets wetted in one go, switching to stored pressure pays off. The iK Sprayers „iK Multi" Pro 2 Druckpumpzerstäuber (inkl. Farbenkennzeichnung) covers the standard case, and the 360-degree version handles everything sprayed overhead or from below on top of that.

When it's about dwell time on vertical panels, the road leads to foam. The iK Sprayers „iK Foam" Pro 2 Pumpschaumsprüher (inkl. Farbenkennzeichnung) is the direct way in, and the solo CLEANLine „VARIOfoam" (304 FA / FB) 2 Liter Schaumsprüher is the pick when you want to reset the consistency to suit the job.

Inside the cabin, keep it small and dry. The Koch-Chemie Foamer Bottle Schaumspender for leather and upholstery, plus the iK Sprayers „iK Multi" TR Mini 360º kleine Sprühflasche (28/400) for plastics and hard-to-reach edges. Both meter out so sparingly that nothing runs behind the trim.

If you run several products in parallel, think in sets rather than single units: one sprayer for acid, one for alkaline, one for the quick sealant, each colour-marked. The solo CLEANLine (304 A / B) Pumpsprüher 2 Liter is the serviceable base for that. The three sub-categories sit under Spray bottles, Pressure sprayers and Foam sprayers.
